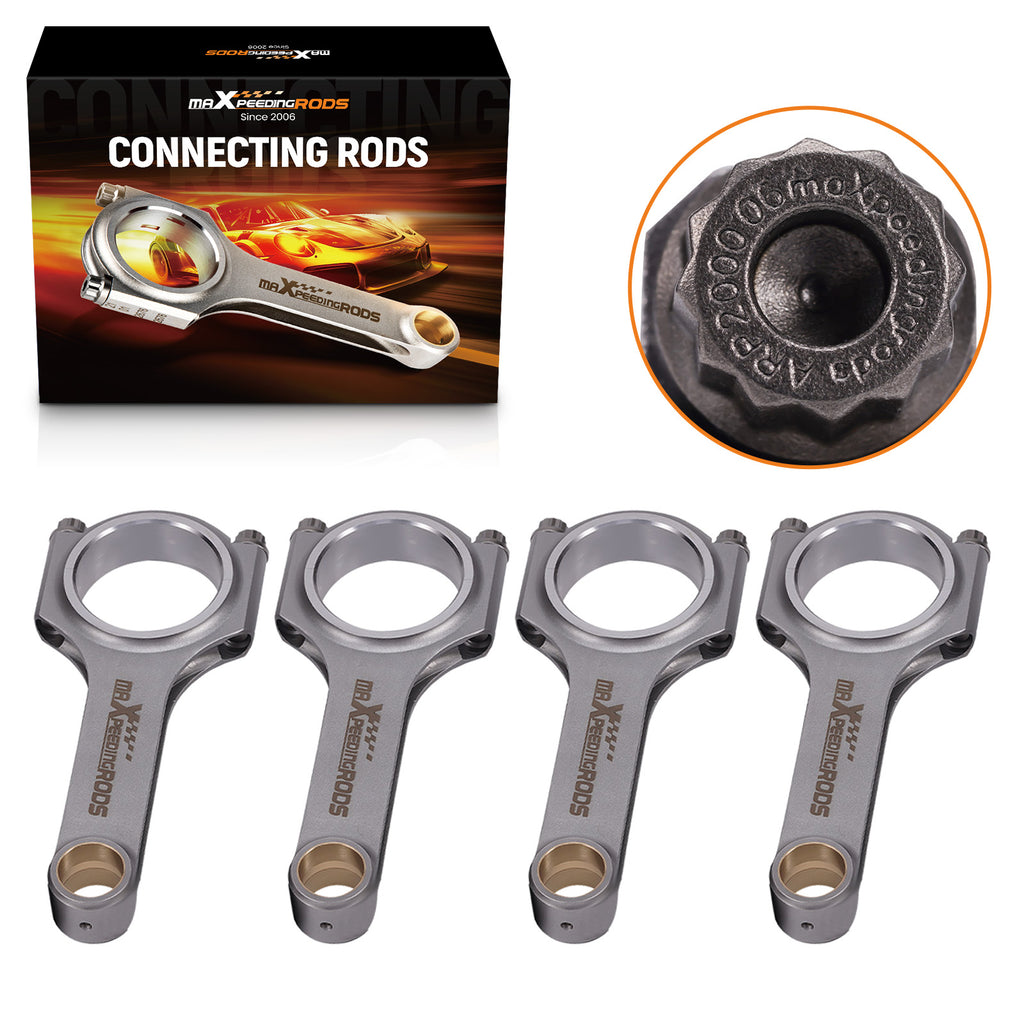

H-Beam Connecting Rods ARP Bolts compatible for Acura Integra GSR B18C1 Type R B18C5 94-01

filler

Price:
Sale price$383.00

Description

Application

Compatible for Acura Integra GSR (1994-2001) – Fits B18C1 1.8L DOHC VTEC engine
compatible for Acura Integra Type R (1997-2001) – Fits B18C5 1.8L DOHC VTEC engine
compatible for Honda Integra (JDM DB8/DC2) (1995-2001) – Fits B18C (JDM spec) 1.8L DOHC VTEC engine

Specification

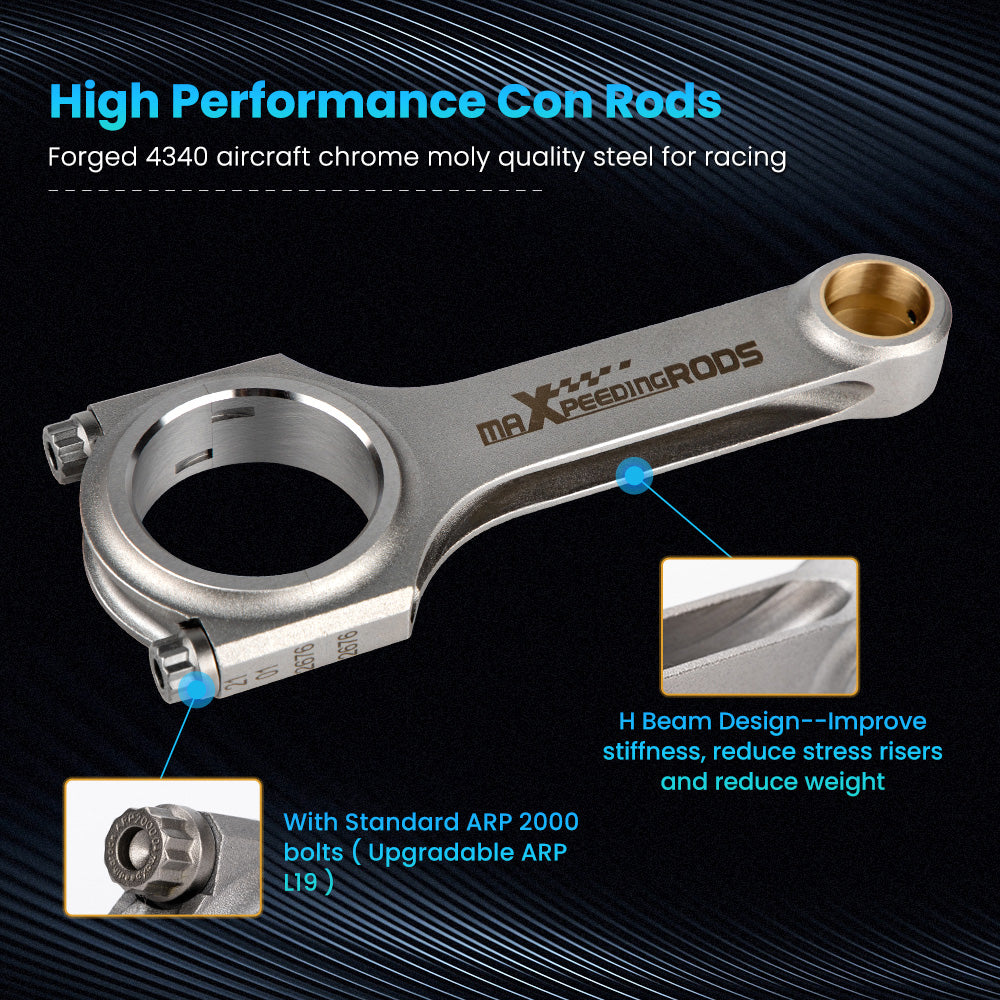

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision

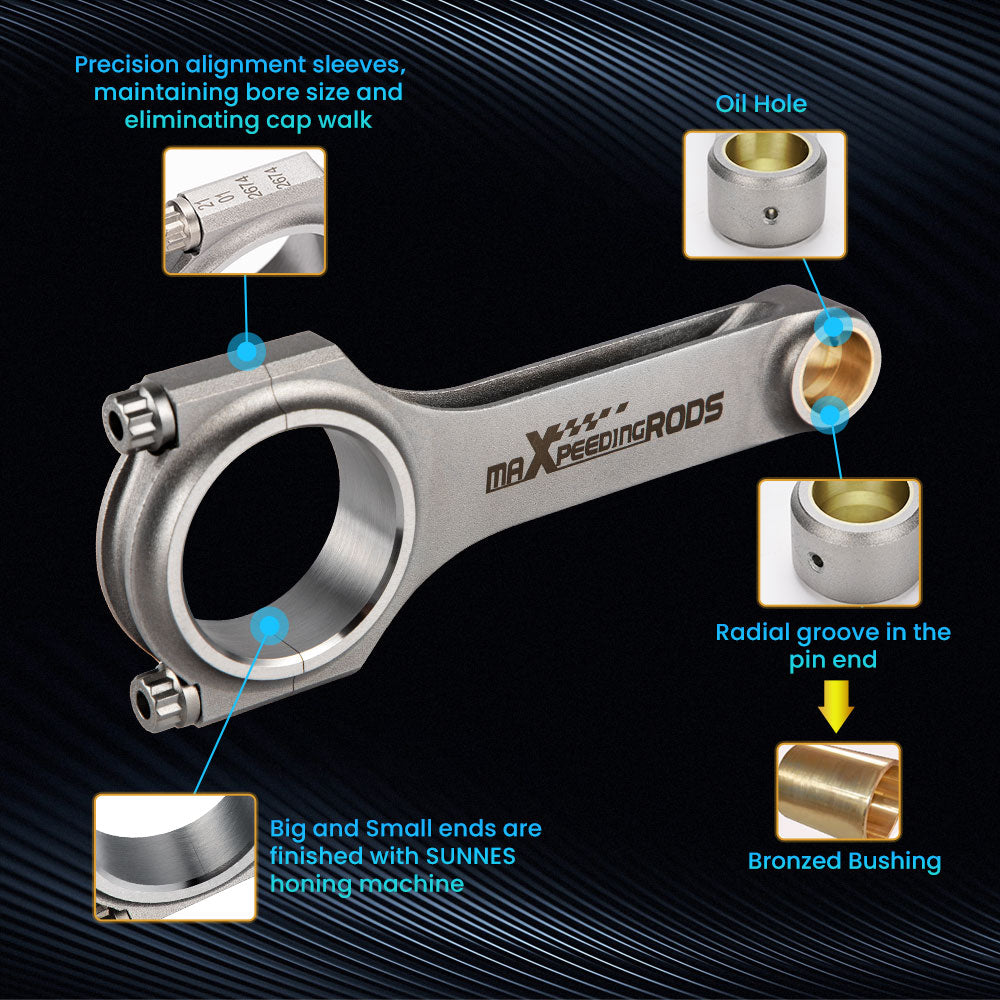

Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

Dimension

Connecting Rod Length Center to Center: 138.00mm/5.433in
Approximate Connecting Rod Weight:652g
Big End Bore Diameter: 48.00mm/1.890in
Pin End Bore Diameter: 21.00mm/0.827in
Big End Width: 21.80mm/0.858in
Small End Width: 21.80mm/0.858in

Performance Ratings

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9000rpm

Packaging

Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM
