Description
Application
Compatible for:
BMW 3 (E90) (2004-2011) 316i, 318i, 320i, 323i, 325i, 328i, 330i, 335i, 316d, 318d, 320d, 325d, 330d, 335d.
BMW 3 Touring (E91) (2004-2012) 316i, 318i, 320i, 323i, 325i, 328i, 330i, 335i, 316d, 320d, 325d, 330d, 335d.
Note:
1) This product fit RWD vehicles only!
2) We suggest adding washers to avoid the engine bar and drilling the rear OE shock top mount upper part a little bigger to a diameter of 12mm.
Note: Not suitable for X-drive or M3 models
Specifications

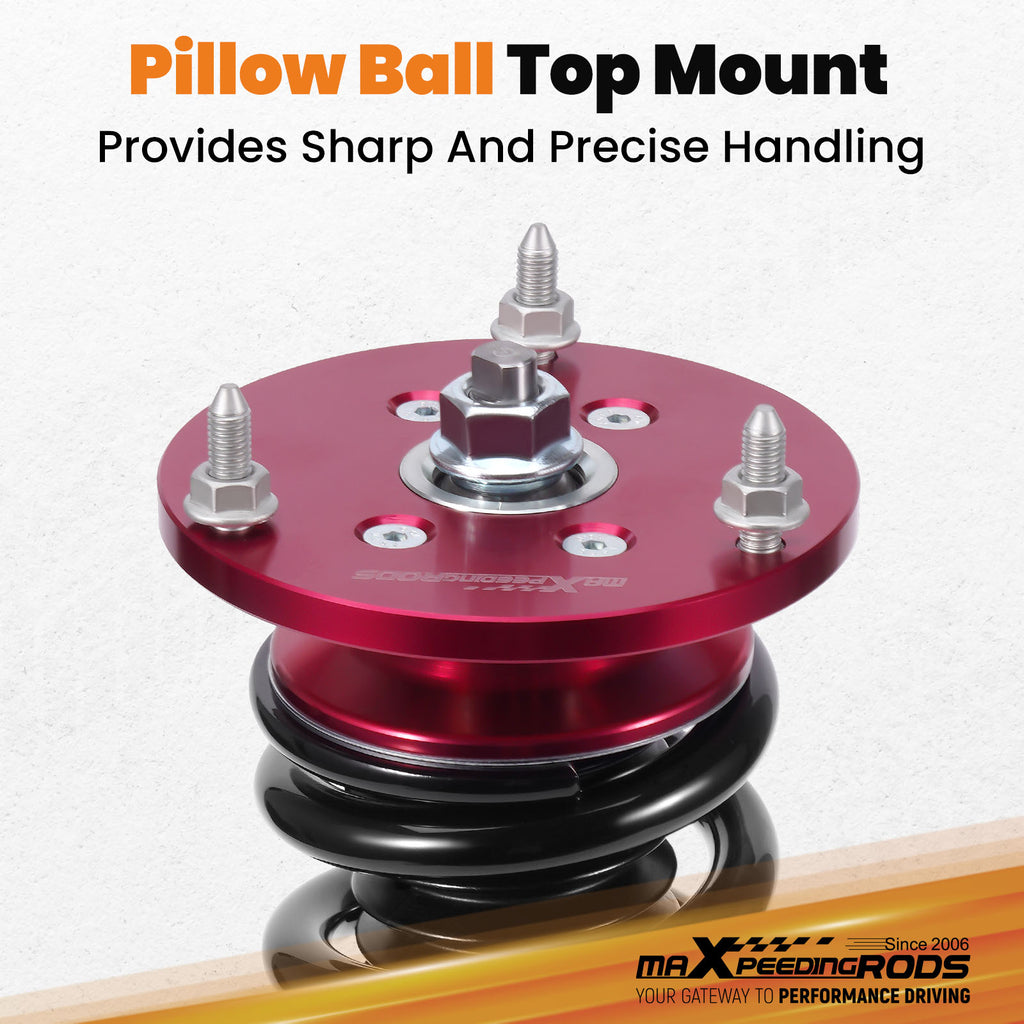

Front top mount: Pillow ball
Rear top mount: Use OE top mounts
Damping adjustable: Not available
Height adjustable: Yes, lowering 25-75mm, depending on the vehicle models
Camber adjustable: Not available
Spring rate Front: 10 kg/mm (560 lbs/in)
Spring rate Rear: 8 kg/mm (448 lbs/in)
Front spring inner diameter: 70.5mm
Rear spring inner diameter: 70.5mm
Spring length Front: 200mm
Spring length Rear: 180mm
Spring Preload advised: 7-10 mm
Color: Red body with black spring
Warranty: One-year warranty for any manufacturing defect

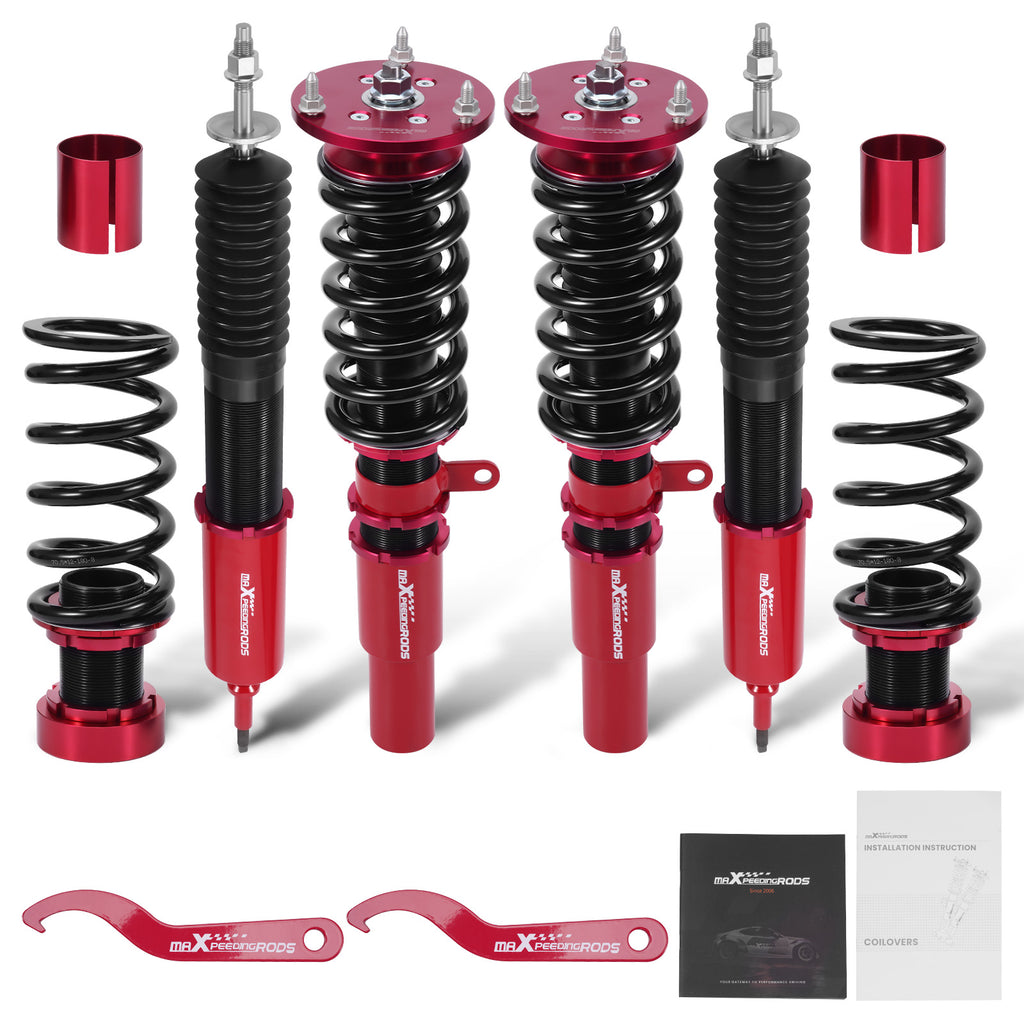

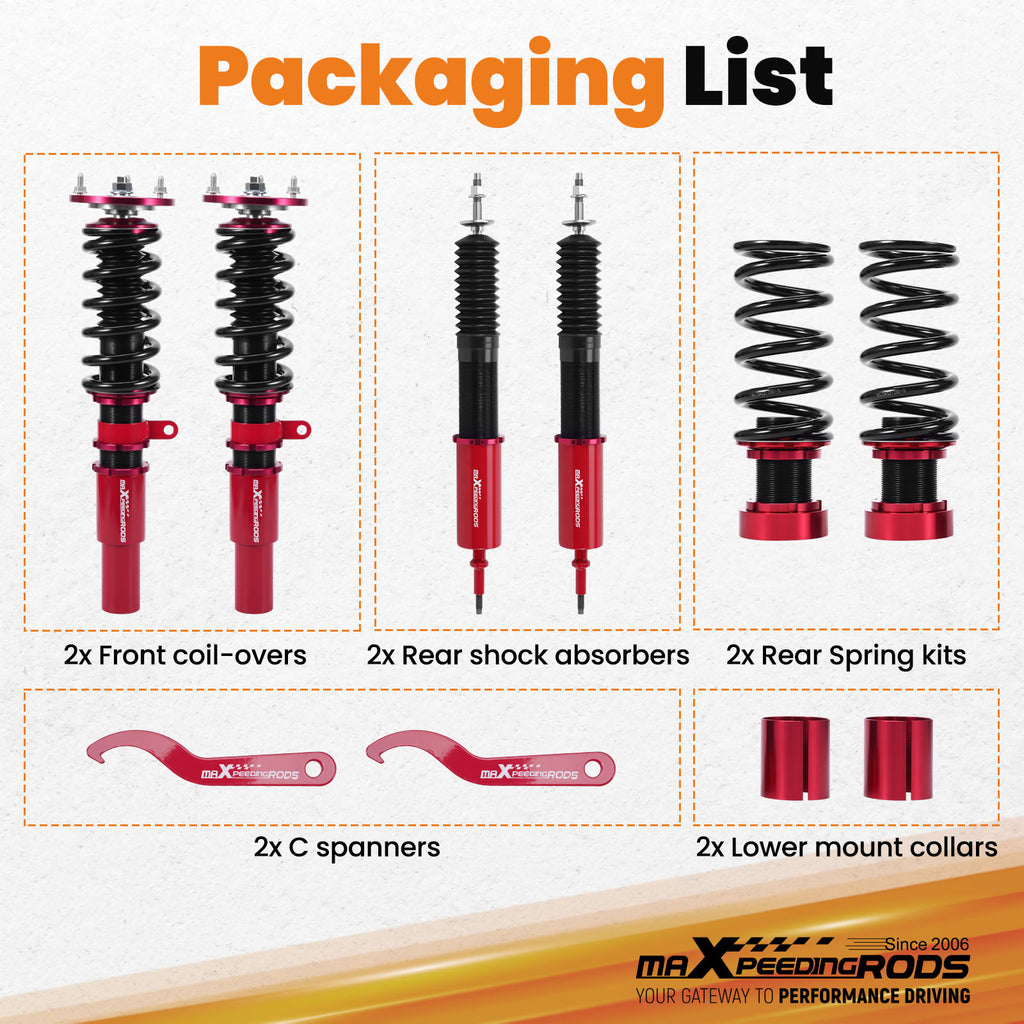

Package included
2x Front coil-overs
2x Rear coil-overs
2x C spanners
Dimension
Package size: 70*50*20 cm
Weight: 26000 g
Feature
- Lowered height adjustment from 25-75mm (depends on vehicle models), which allows a lower center of gravity and also add a more aggressive stance
- Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
- Adjustable Camber Plate and Pillow ball top mount for sharpening steering response ( for some models)

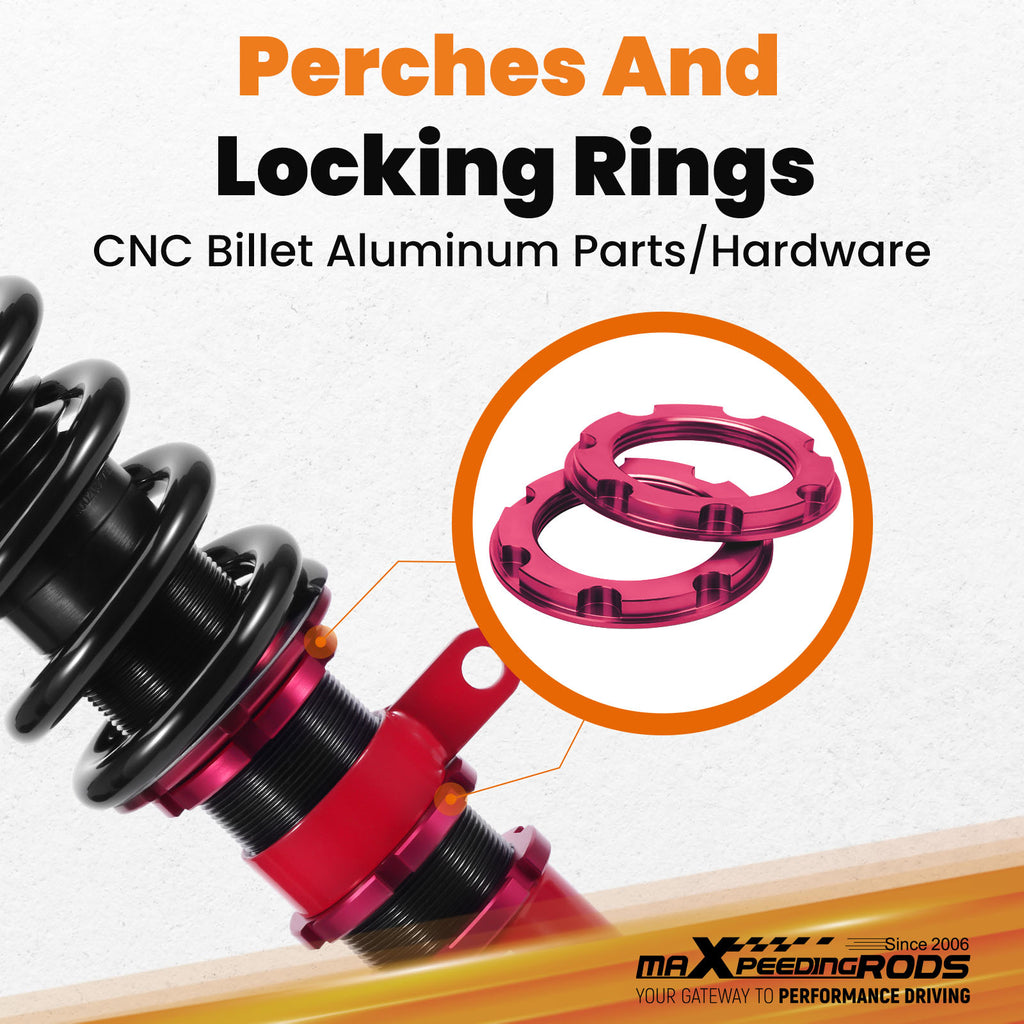

- CNC machined Aluminum top mounts and lockers-- excellent strength, and save weight
- Heavy Duty Steel Lower Mounts--Highly Durable & Reliable
- High tensile spring—tested over 600,000 times to ensure high strength and durability.
- All inserts come with fitted long rubber boots--to protect the damper better and be durable.
- Twin-Tube structure -- provides excellent handling & control characteristics for most driving conditions
- Corrosion-resistant finish – anodized aluminum and powder-coated carbon steel parts.
Notice
1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. An impact wrench is prohibited during the installation, as it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm; otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over. Spraying with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
