Maxpeedingrods
filler
Price:
$192.00

Description

CO-E46-G-NA-VG3
CO-E46-G-NA-VG3
1. Adjustable Height
1. Adjustable Height
Able to lower ride height by 1''-3''; allows user to have a more aggressive stance and can adjust without taking coilovers out the car
2.High Quality Components
2.High Quality Components
Most components of the suspension parts are made from 6061-T6 aluminum to increase strength and rigidity

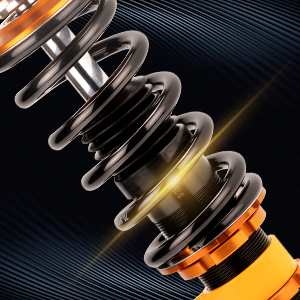

3.High Tensile Strength Spring
3.High Tensile Strength Spring
Tested under a 600,000 time continuous compression test, the spring distortion was less than 0.04%
4.Twin-tube Construction
4.Twin-tube Construction
Twin-Tube shock design is used for low internal frictional resistance and dust boot protects damper seal

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for BMW 3 (E46) 4-door sedan 330i; 325i; 328i; 318d; 320d; 320i,325i ;330d (02/1998-04/2005)
Compatible for BMW 3 2-door Convertible (E46) 330ci; 325ci;323ci; 320cd,330cd (04/2000-12/2007)
Compatible for BMW 3 2-door Coupe (E46) 320ci; 325ci; 330ci;320cd; 330cd; (02/1999-12/2006)
Compatible for BMW 3 Touring 5-door wagon/estate (E46) 316i; 325i; 328i; 330i; 323i; 325i; 318d; 320d; 330d; (10/1999-05/2005)
note: not for Xi/xd 4 wheel drive

Specification

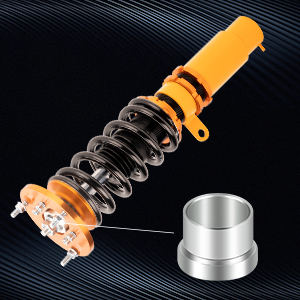

Top mounts: front pillow ball top mount with camber plate
rear pillow ball top mount
Damping: not available
Spring rate: front 8kg/mm
Spring rate: rear 7kg/mm
Adjustable height: Yes lowering 1'' to 3''
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold

Package included

coilovers for 2 front and 2 rear
a pair wrench for height adjustment

Dimension

weight: 25320g
size: 63*51*21 cm

Feature

1. Lowered height adjustment from 1''-3'' which allows lower center of gravity and also adds a more aggressive stance
2. Twin-Tube structure allows sufficient stroke within the shock absorber
3. Separate height adjustment does not affect damper stroke
4. High Tensile performance spring ¨C STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
5. Height Adjustment tools included
6. Camber plate top mounts help to eliminate the need for a separate camber kit
7. Pillow ball top mount - It improves the steering feel and response
8. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
9. Full rebuildable
