MaXpeedingrods is a leading manufacturer of high-quality Auto parts since 2006. The company has providing improved technology and outstanding performance solutions for domestic passenger cars, SUVs, trucks. MaXpeedingrods offers a wide range of revolutionary products.
maXpeedingrods COT6 lowering coilover, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate（for some vehicles) and decent outlook , offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coilover are assembled in dust-free factory, which turns out good quality and long life.
Application
Compatible Compatible for HONDA CIVIC & Si VIII 2-door coupe (FG1/FG2) 2006-2011
Compatible For HONDA CIVIC & Si VIII 4-door sedan (FA1/FA2/FA3/FA4/FA5, North America only) 2006-2011
Compatible For HONDA CIVIC & Si VIII 4-door sedan (FD1/FD2/FD3/FD4/FD6/FD7, International model) 2006-2011
Compatible For Acura CSX 4-door sedan（Canada）2006-2011
Note: not for the Mugen trim level
Specification
| Top mounts | pillow ball top mount with camber plate front |
| Damping | 24 levels rebound damping adjustable |
| Front Spring Rate | 7 kg/mm (392 in/lbs) |
| Rear Spring Rate | 6 kg/mm (336 in/lbs) |
| Adjustable Height | Yes lowering 1" to 3" |
| Shock type | Twin tube |
| Spring Preload | 7-10 mm |
| Color | Black body with gold spring |
| Gross weight | 25kg |
| Package size | 63*51*21cm |
Feature

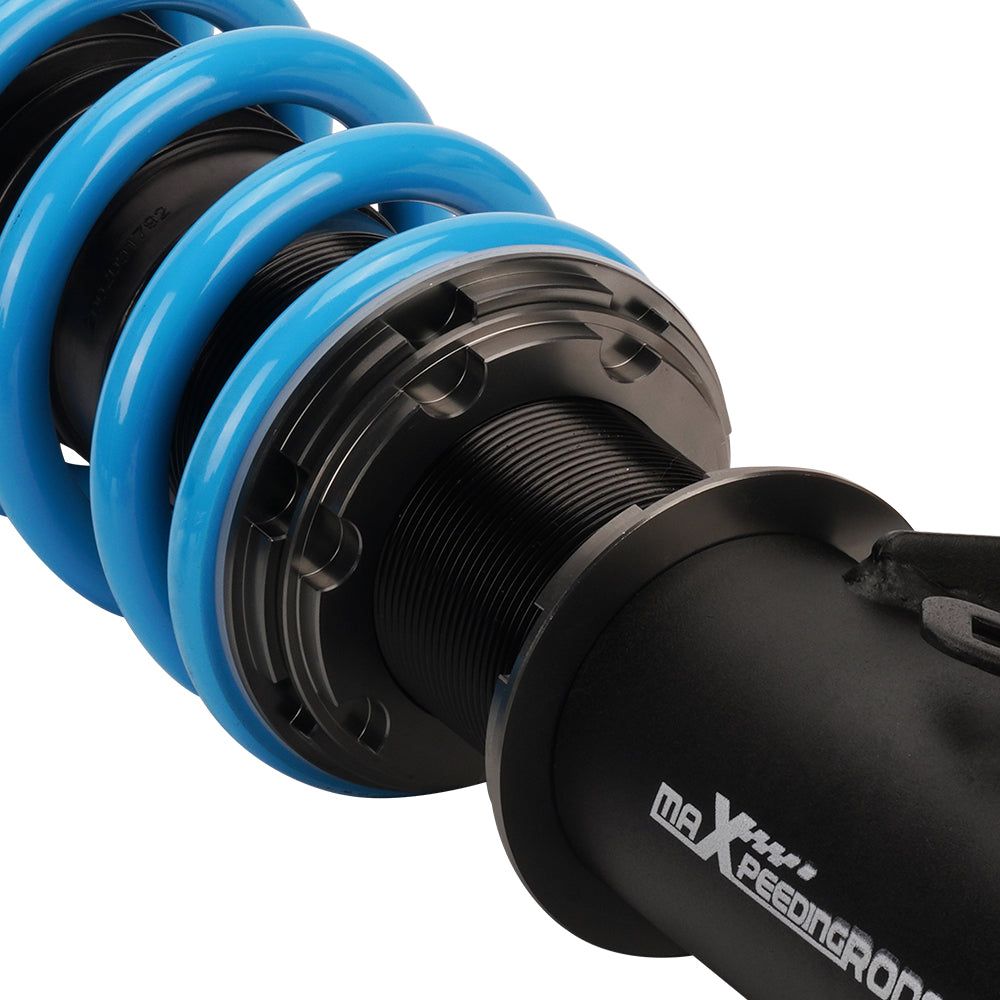

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2.Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.（Front Only)

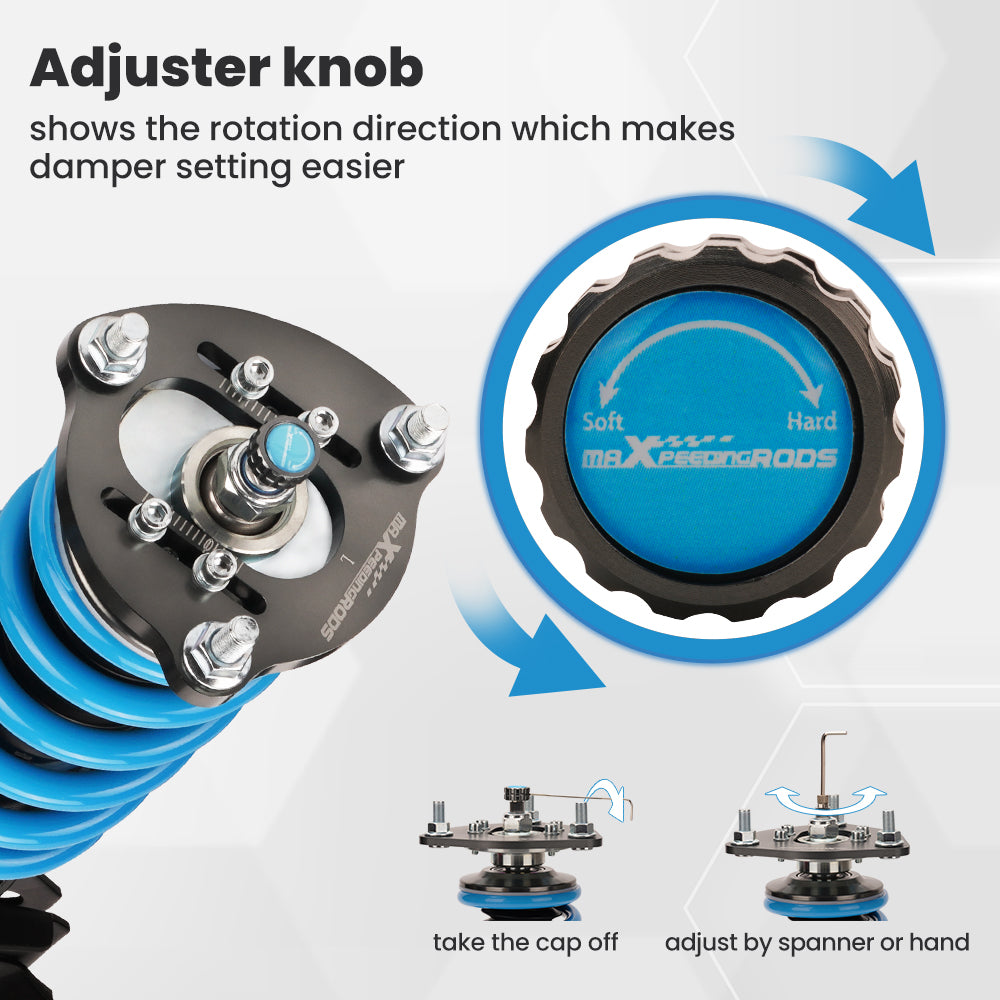

3.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
4. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions.
5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
6. Separate height adjustment does not affect damper stroke,Height can be adjusted with coilovers installed on the vehicle.
7.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
8. Height Adjustment tools included.
9. Full rebuildable.
10.Upgraded damper oil---make damping more stable and smooth in wide temperature range.
11.Clean room assembled---maintain higher level of accuracy and reliability.
12.All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.

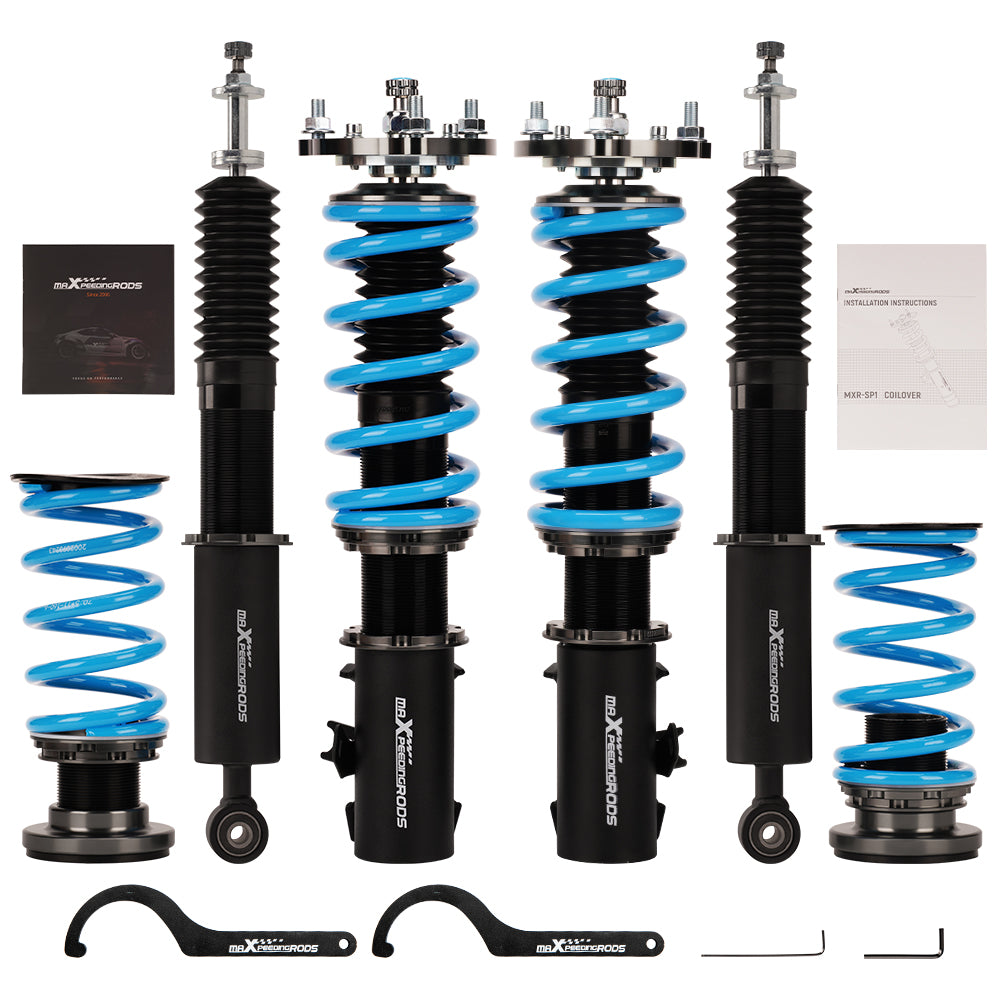

Product included
- Complete coilovers 2 front and 2 rear
- A pair wrench for height adjustment.
- User Instructions
Warranty: one year warranty for any manufacturing defect
