Description
Introduction:
MaXpeedingRods H-beam connecting rods are designed for demanding racing applications to increase horsepower and efficiency. The strength is suitable for high-horsepower applications while keeping the weight light. Professional processing makes it have super high wear resistance and excellent durability.
Application:
Compatible for Honda Civic B16A Engine
Compatible for Honda Civic Si 1.6L 1999-2000
Compatible for Honda Civic del Sol 1.6L 1994-1997
Specification£º
*Type: Forged 4340 aircraft chrome moly quality steel for racing

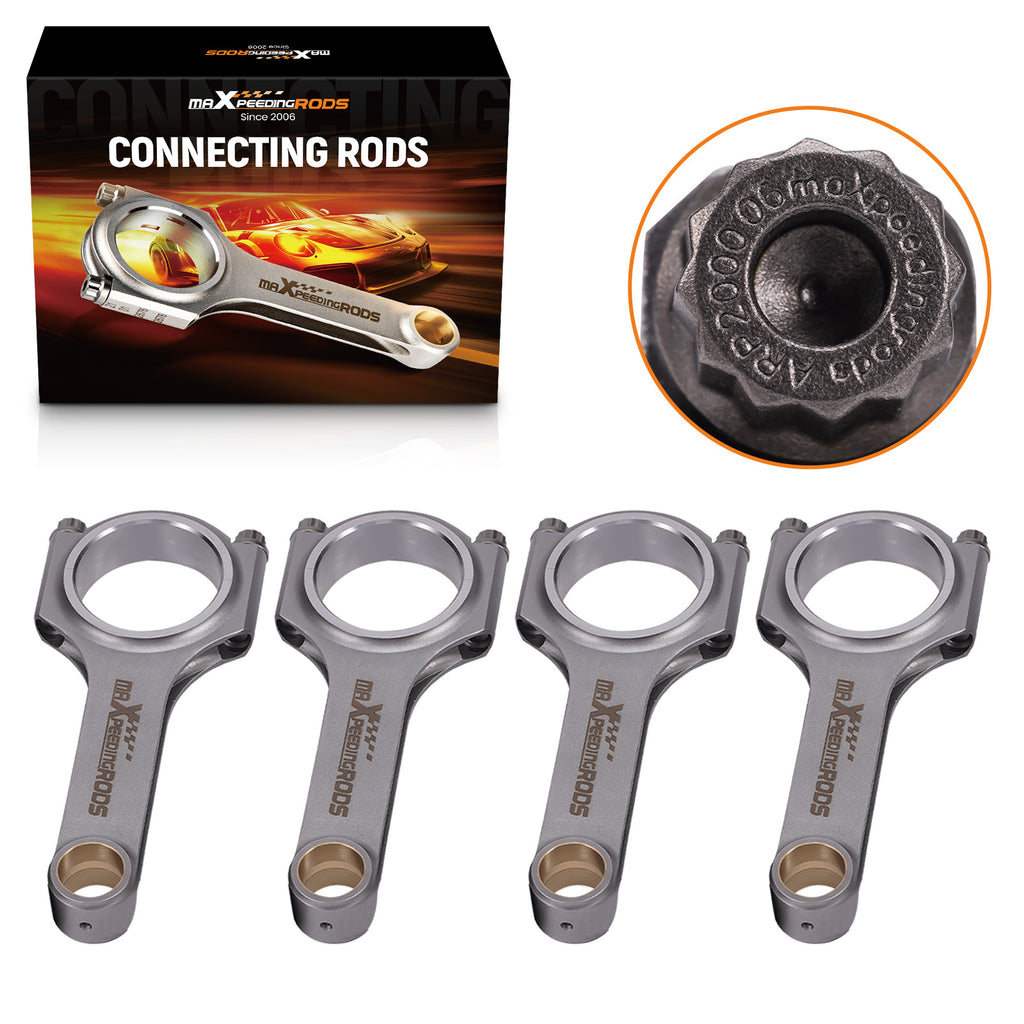

*H-beam Conrods Quantity: 4 Pieces as showing in picture

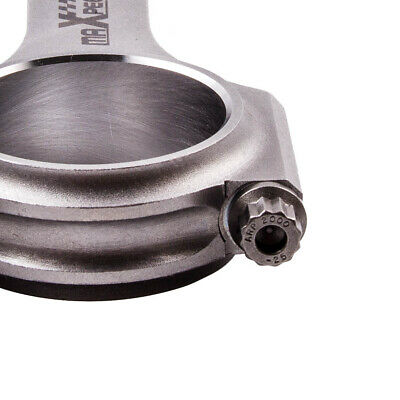

*Bolts: Including Genuine ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating: 200HP/piece
*Top acceleration: 9000rpm
*package size: 28CM*21CM*10CM
Dimension:
Center to center length:134.36mm/5.29"
Big end diameter:48mm/1.89"
Small end diameter:21mm/0.827"
Big end width:23.75mm/0.935"
Small end width:21mm/0.827"
Feature:
1. Performance Con Rods£»
2. H-Beam design reduces weight without compromising strength£»
3. Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers£»
4. 100% CNC machined,Precision rod cap alignment dowels£»
5. Bores finished to +/- .01 mm£»
6. Balanced to within +/- 1 g per rod£»
7. Each rod is magnetic particle tested to ensure free of flaws£»
8. 100% X-rayed, sonic tested£»
9. Custom-made Service.
Note:
*Professional installation is highly recommended £»
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Warranty: one year warranty for any manufacturing defect
