Description
Application
Compatible for Mazda CX-7 2.3L MZR DISI 2.3 Turbo L3-VDT engine 190kW 258HP
Compatible for Mazda speed 3 2.3L with MZR DISI 2.3 Turbo L3-VDT engine 190kW
258HP
Compatible for Mazda speed 6 2.3L with MZR DISI 2.3 Turbo L3-VDT engine 190kW 258HP 2006-2014
OE/Part number
53047109904, 53047109907, L33L13700B,
L33L13700C, L3Y11370ZC, L3Y41370ZC,
L3Y31370ZC, L3YC1370Z, L3YC1370ZA
Specification
Turbo Model: K0422-582
Engine: DISI L3-VDT
Cooled Type: Oil+Water cooled
Bearing Type: Journal Bearing
Thrust bearings: 270 Degrees
Horsepower: 260HP
Condition: New
Accessories: You will receive the parts exactly as shown in the picture above
Package Size：26x 24x 22.5 cm
Package Weight: 7800g
Warranty: one year warranty for any manufacturing defect

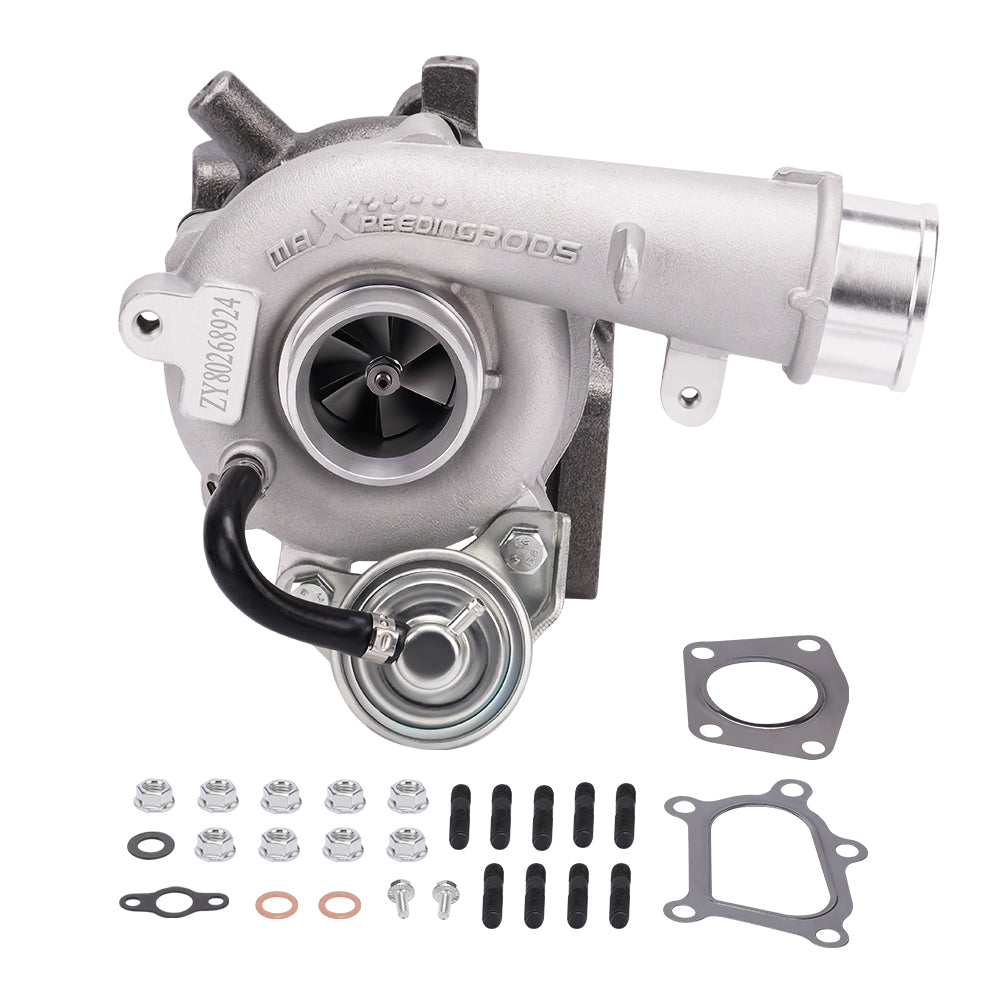

Package included
1x Turbocharger
4x Oil Feed / Return Gaskets
1x Turbo Exhaust Gasket
1x Turbo Outlet Flange Gasket
9x Stud bolt& nut
2x Compressor bolt
1x Gloves
1x Manual
1x Brochure
1x Sticker
Feature
* Product Material

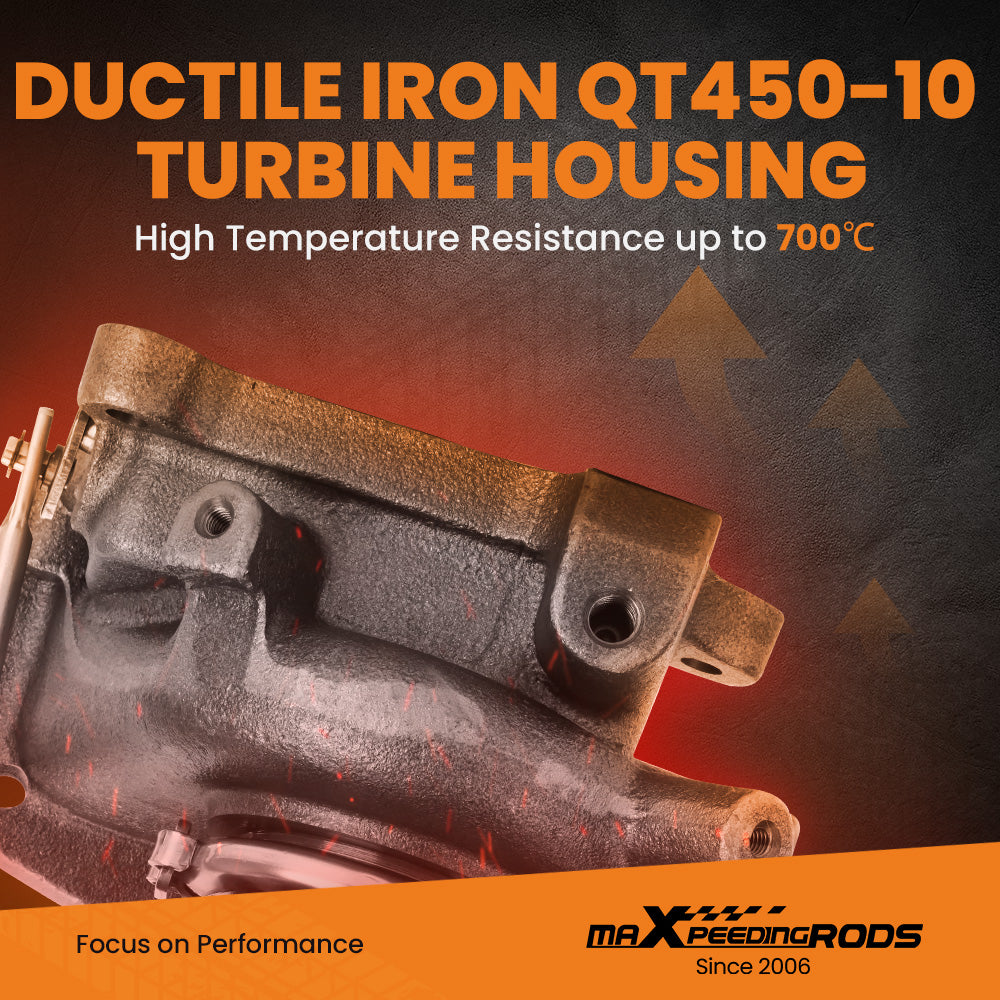

1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃

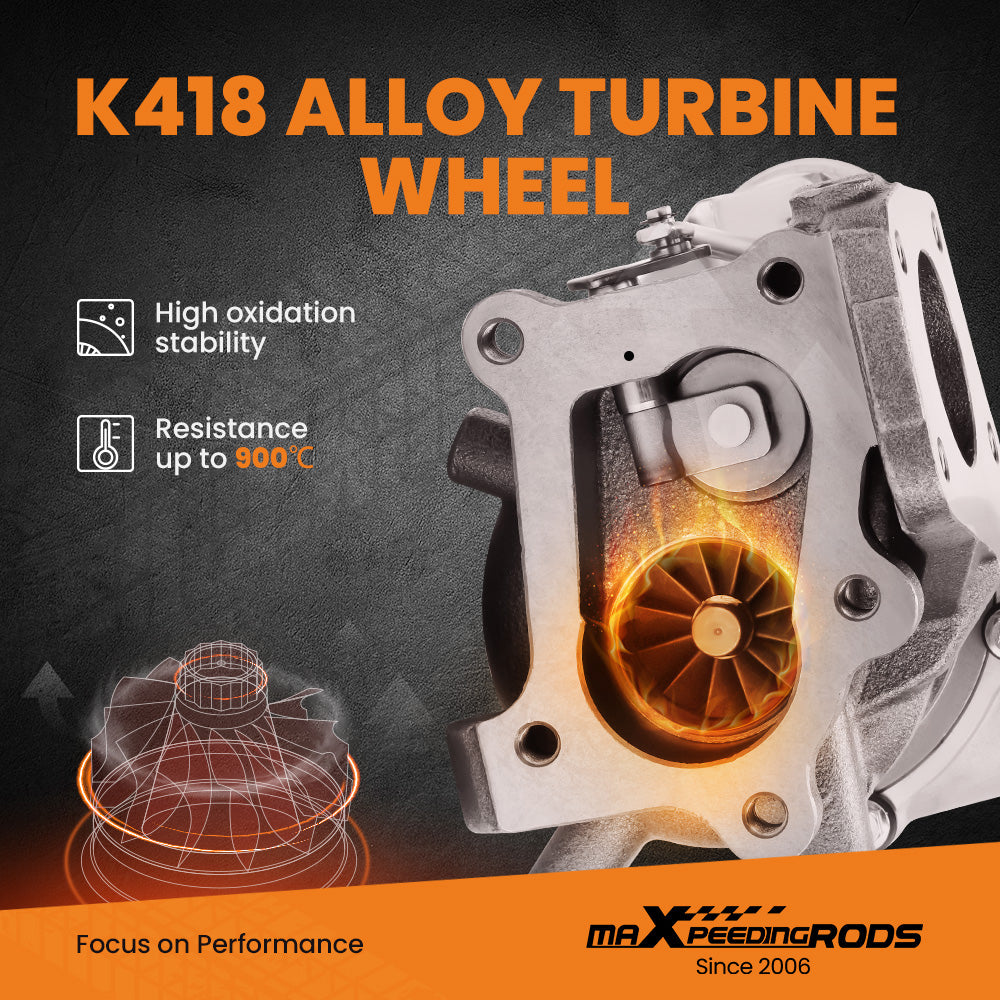

2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃

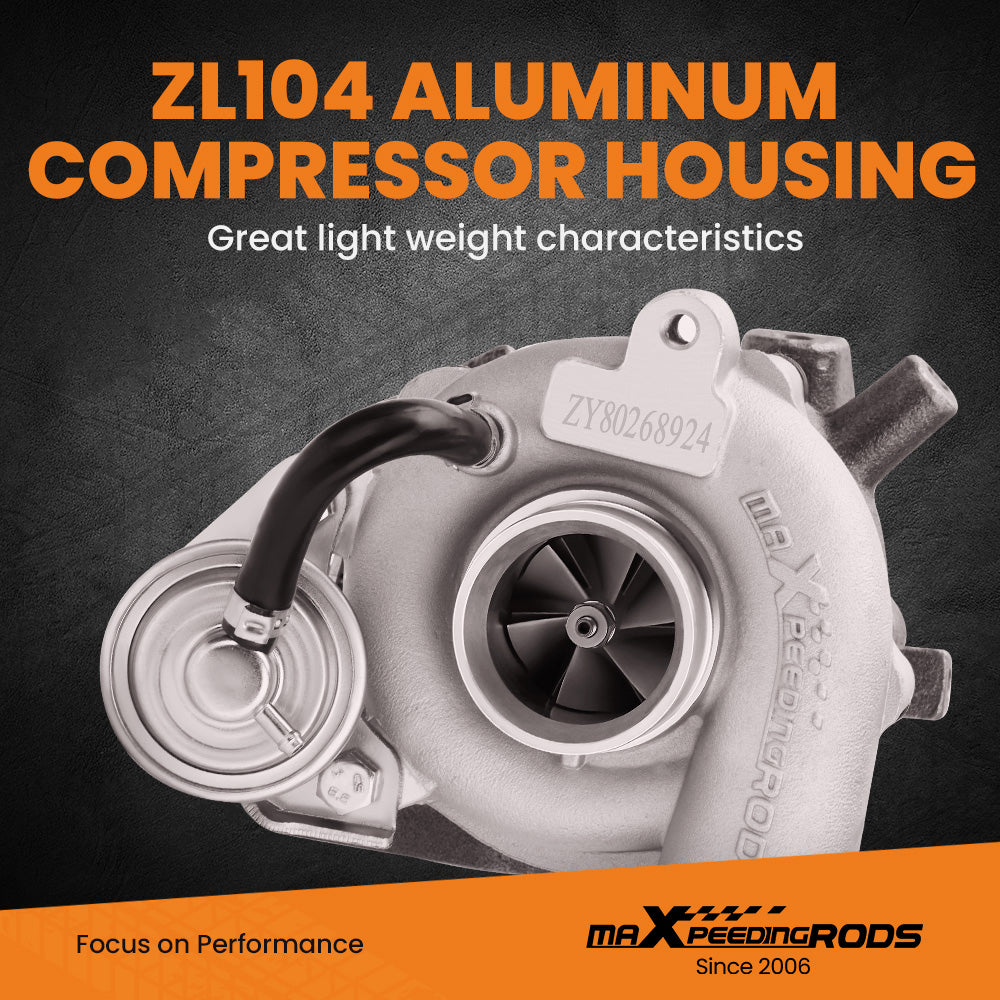

3. Compressor housing: ZL104 aluminium with lightweight

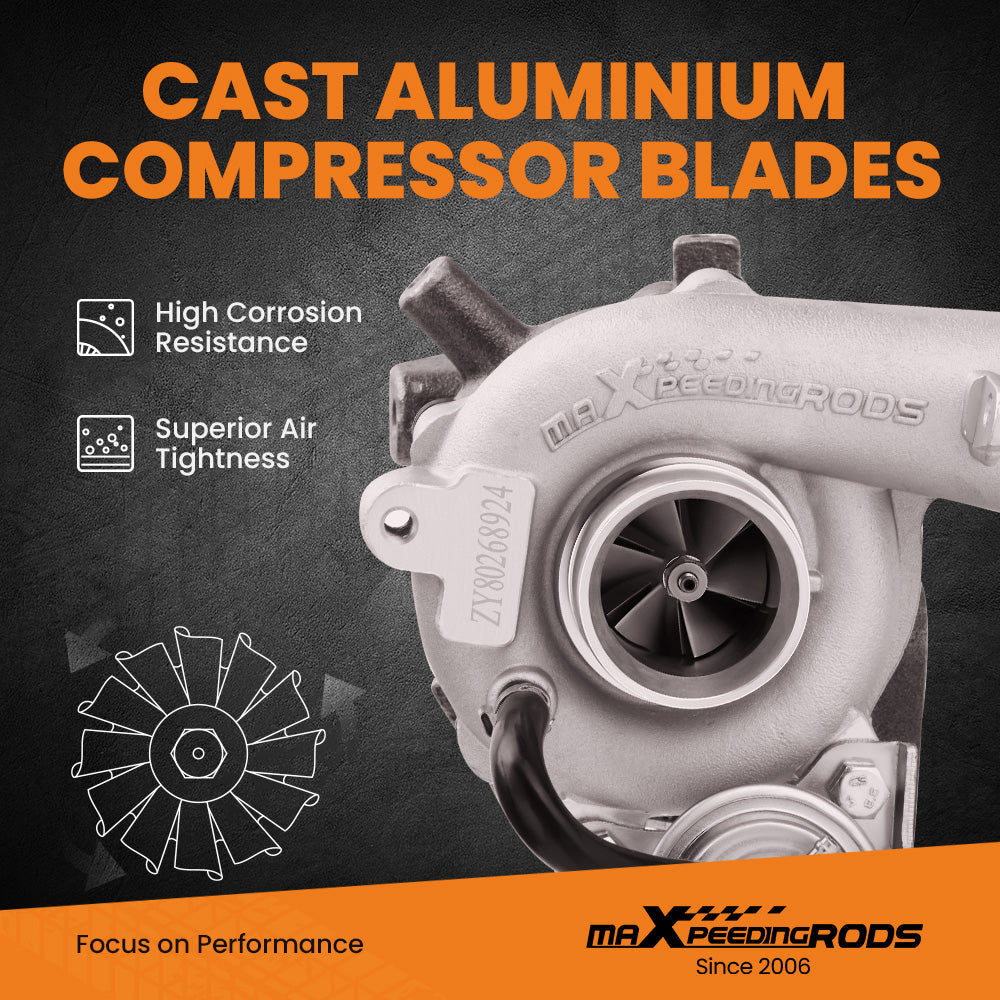

4. Compressor wheel/blades: Cast aluminium blades – superior airtightness & corrosion resistance
* Product Performance
1. OEM quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Product Certification: TüV ISO 9001 CERTIFIED
* Technology Advantage:
1. 100% balancing Test by TURBO TECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Note
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
